Electron Micrographs of Oocytes in Neonatal Mouse Ovaries

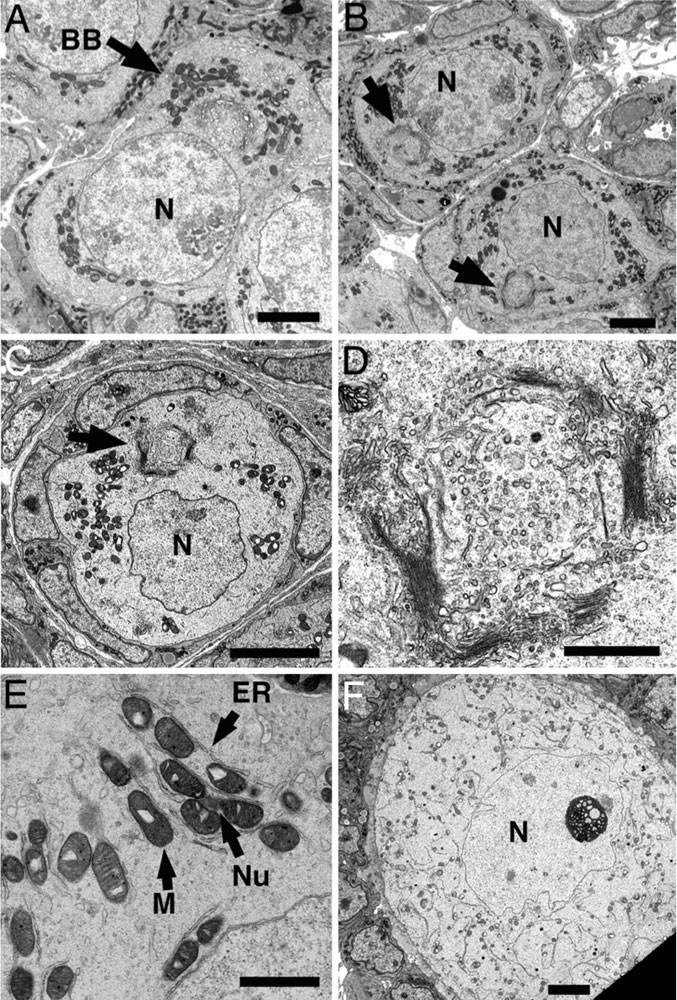

- A - Micrograph of an oocyte within a germline cyst from PND1 showing a well defined Balbiani body (arrow) with Golgi surrounded by mitochondria.
- B - Micrograph of two oocytes from PND3 (top oocyte in a newly formed primordial follicle and bottom oocyte still within a germline cyst) with Balbiani bodies (arrows).
- C - Micrograph of an oocyte within a primordial follicle at PND7 again showing a Balbiani body (arrow).
- D - Higher-power view of Golgi from oocyte in C showing stacks of vesicles arranged in a circular structure.
- E - Highly magnified image of mitochondria and associated ER with darkly stained potential nuage.
- F - Oocyte within primary follicle with mitochondria and ER evenly distributed throughout the cytoplasm.
- EM Links: All Images | Balbiani body | B | C | D | E | F
Legend
- BB - Balbiani body
- M - mitochondria
- n - nucleus
- Nu - nuage, germ line granules have an electron-dense perinuclear structure.
- French, Nuage = "cloud"
Scale bars: A–C, F, 5 microns; D, 1 microns; E, 0.5 microns.
