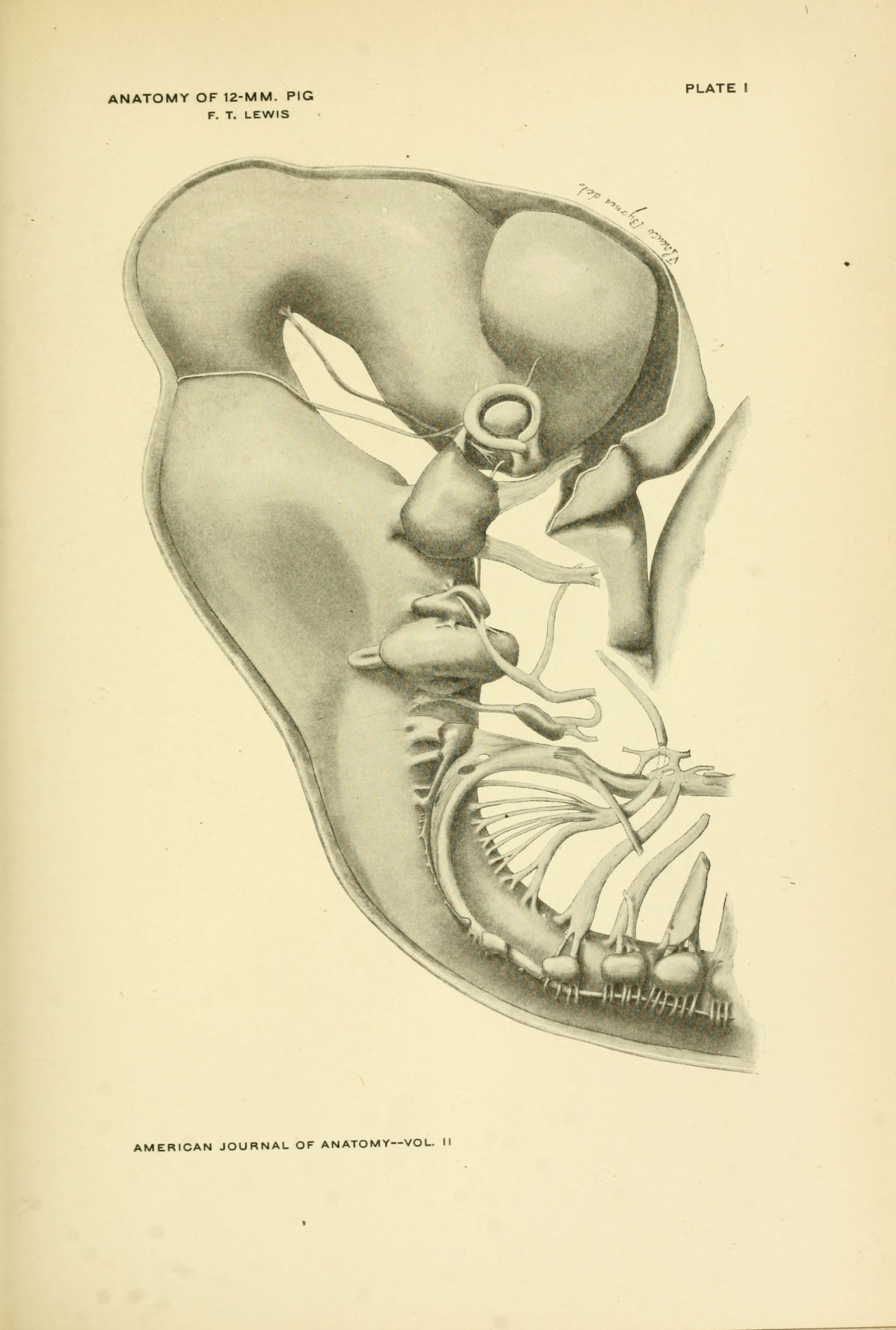

Plate I Pig Embryo of 12.0 mm
Reconstruction from transverse sections, Series 5.
To show especially the cephalic nerves, c. 1, c. 2, c. 3, Cervical nerves. Cbl, Cerebellum, com. Ganglionic commissure. Dien, Diencephalon. e.i'. External branch of the spinal accessory nerve. F, Froriep's ganglion. Gf. 5, Gasserian ganglion. H, Cerebral hemisphere. ;, Jugular ganglion. L, Lens. M. b, Mid-brain. Mdb., Mandibular process. Md. ob, Medulla oblongata. Mic, Maxillary process, n, Ganglion nodosum. Na, Nasal pit. Op, Optic cup. Ot, Otocyst. Rec. I, Recurrent laryngeal nerve. Yen. IV, Roof of fourth ventricle. 3, Oculomotor nerve. 4, Trochlear nerve. Sop, Branches of the ophthalmic division of the trigeminal nerve. 6, Abducens nerve. 7, Geniciilate ganglion of the facial nerve. 8, Vestibular ganglion. 9, Petrosal ganglion. 10, Vagus nerve. 11, Spinal accessory nerve. 12, Hypoglossal nerve.
x 20 diams.
Reference
Lewis FT. The gross anatomy of a 12 mm pig. (1903) Amer. J Anat. 2: 221-225.
