Arey LB. Developmental Anatomy. (1924) W.B. Saunders Company, Philadelphia.

Developmental Anatomy: Chapter I. - The Germ Cells and Fertilization | Chapter II. - Cleavage and the Origin of the Germ Layers | Chapter III. - Implantation and Fetal Membranes | Chapter IV. - Age, Body Form and Growth Changes | Chapter V. - The Digestive System | Chapter VI. - The Respiratory System | Chapter VII. - The Mesenteries and Coelom | Chapter VIII. - The Urogenital System | Chapter IX. - The Vascular System | Chapter X. - The Skeletal System | Chapter XI. - The Muscular System | Chapter XII. - The Integumentary System | Chapter XIII. - The Central Nervous System | Chapter XIV. - The Peripheral Nervous System | Chapter XV. - The Sense Organs | Chapter XVI. - The Study of Chick Embryos | Chapter XVII. - The Study of Pig Embryos | Figures
Historic Disclaimer - information about historic embryology pages
Mark Hill.jpg
Pages where the terms "Historic Textbook" and "Historic Embryology" appear on this site, and sections within pages where this disclaimer appears, indicate that the content and scientific understanding are specific to the time of publication. This means that while some scientific descriptions are still accurate, the terminology and interpretation of the developmental mechanisms reflect the understanding at the time of original publication and those of the preceding periods, these terms and interpretations may not reflect our current scientific understanding.     (More? Embryology History | Historic Embryology Papers)

Chapter I The Germ Cells And Fertilization The Germ Cells

All multicellulai' animals, except a few invertebrates, result from the union of two ripe sex cells. These are re])resentative portions of the germ plasm stored in the male and female sex glands, and are termed spermatozoon and ovinn respectively. In form and function they are quite unlike, for each is adapted to a specific purpose. It will be simplest first to describe these elements fully-formed, and then to show how they develop, mature, meet, and unite.

The Ovum

Fig. 5. Ovum of monkey (Prentiss). X 430.

The female germ cell, or ovum, is a typical animal cell produced in the ovary. Although always large, its exact size is correlated with the amount of stored food substance. The smallest eggs are those of the mouse and deer (about 0.07 mm.). The largest have a diameter measurable in inches (birds; a shark). Most ova are nearly spherical in form and posSess a nucleus with nucleolus, chromatin network, and nuclear membrane (Figs. 5 and 7). The nucleus is essential to the life, growth, and reproduction of the cell. The function of the nucleolus is unknown; the chromatin bears the hereditary qualities. The cytoplasm is distinctly granular and contains more or less numerous yolk granules, mitochondria, and rarely a minute centrosome.

The yolk, or deutoplasm, containing a fatty substance termed lecithin, furnishes nutriment for the developing embryo. It is doubtful if any ovum is totally devoid of yolk, yet it is useful as a basis for classifying eggs. Those ova which contain relatively little yolk, uniformly distributed, are termed isolecithal. Examples are found among various invertebrates and in all placental mammals, for such embryos either attain an independent existence quickly or are sheltered and nourished within the uterine wall of the mother. If the yolk collects at one end (called the vcgdal pole in contrast to the more jmrely jirotoplasmic animal pole) the ova are said to he telolecuhal. Many invertebrates and all vertebrates lower than the Placentalia illustrate this type. The so-called yolk of the hen - s egg (Fig. 6) is the ovum proper and its yellow color is due to the large amount of lecithin it contains. Finally, among the arthropods the yolk is centrally located and surrounded by a peripheral shell of clear cytoplasm; such eggs are centrolccithal.

Arey1924 fig006.jpg

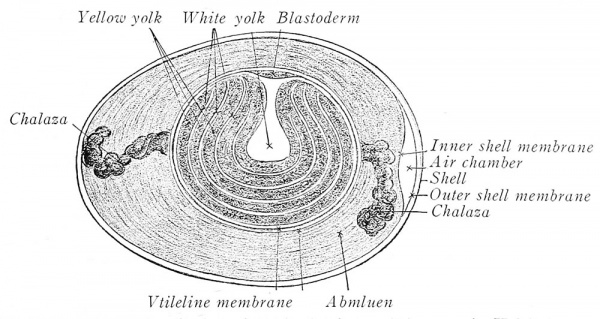

Fig. 6. Diagrammatic longitudinal section of a hen's egg (Thomson in Heisler)

Arey1924 fig007.jpg

Fig. 7. A. Human ovum, approaching maturity, examined fresh in the liquor folliculi (Waldeyer). X 415. The zona pellucida appears as a clear girdle surrounded by the cells of the corona radiata. Yolk granules in the cytoplasm enclose the nucleus and nucleolus. B. A human spermatozoon correspondingly enlarged.

Most ova become enclosed within protective membranes, or envelopes. The vitelline membrane, secreted by the egg itself, is a primary membrane (Fig. 5). The follicle cells about the ovum usually furnish other secondary membranes, such as the zona pellucida. In lower vertebrates tertiary membranes may be added as the egg passes through the oviduct and uterus ; the albumen and shell of the hen - s egg (Fig. 6) or the jelly of the frog - s egg are of this sort.

The Human Ovum.

This is relatively of small size, measuring about 0.2 mm. in diameter (Fig. 7). It conforms closely to the isolecithal mammalian type, but has fine yolk granules somewhat condensed centrally. There is apparently a very delicate vitelline membrane, and outside it a thick, radially-striate membrane, the zona pellucida. The striate appearance is said to be due to fine canals through which nutriment is transferred from smaller follicle cells during the growth of the ovum within the ovary.

The Spermatozoon

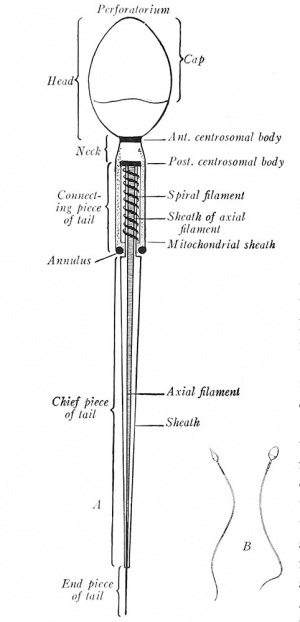

Fig. 8. A. Diagram of a human spermatozoon, surface view (Meves). B, Human spermatozoa, from life, in edge and surface view. X 700.

In a few instances only, does the mature male element, or spermatozoon, resemble a typical cell. Most are slender, elongate structures which develop a flagellum to accomplish the active swimming that characterizes the cell. Unlike the ovum, which is the largest cell of an organism, the spermatozoon is usually the smallest. The extremes of size range from 0.018 mm. in Amphioxus to 2.0 mm. in an amphibian. The commonest shape is that of an elongate tadpole, with an enlarged head, short neck (and connecting piece), and thread-like tail (Fig. 8).

The Human Spermatozoon

The sperm of man is of average size (0.055 mm.) and shape (Fig. 8). Compared to the ovum its volume is as i : 200,000 (Fig. 7). The /zcah is about 0.005 mm. in length. It appears oval in surface view, pear-shaped in profile. When stained, the anterior two-thirds of the^head may be seen to constitute a cap, and the sharp border of this cap is the so-called perforatorium. The head contains the nuclear elements of the sperm cell. The disc-shaped neck includes the anterior centrosonial body. The tail begins with the posterior centrosonial body and is divided into a short connecting piece, a chief piece, or flagellum, which forms about four-fifths of the length of the sperm cell, and a short end piece, or terminal filament. The connecting piece is marked off from the chief piece by the annulus. The connecting piece is traversed by the axial filament {fdvLm principale), and is surrounded: (i) by the sheath common to it and to the flagellum; (2) by a sheath containing a spiral filament; and (3) by a mitochondrial sheath. The chief piece is composed of the axial filament, surrounded by a cytoplasmic sheath, while the end piece comprises the naked continuation of the axial filament.

Atypical spermatozoa occur in some individuals. These include giant and dwarf forms, and elements with multiple heads or tails.

Comparison of the Ovum and Spermatozoon. - The dissimilar male and female sexual cells are admirably adapted to their respective functions, and illustrate nicely the modifications that accompany a physiological division of labor. Each has the same amount of chromatin, although in the sperm it is more compactly stored. The cells thus participate equally in heredity. The egg contains an abundance of cytoplasm (but nO' centrosome), and often a still greater supply of stored food. As a result, it is large and passive, yet closely approximates the typical cell. On the contrary, the sperm is small, and at casual inspection bears slight resemblance to an ordinary cell. Its cytoplasm is reduced to a bare minimum and contains no deutoplasm. Structurally, all is subordinated to a motile existence. Correlated with small size is an extraordinary increase in numbers, for the greater the total liberated the more surely will the ovum be found. Hence, apart from its role in heredity, the chief function of the spermatozoon is to seek the ovum and activate it to divide.

Spermatogenesis, Oogenesis and Maturation

In becoming specialized germ cells, the ovum and spermatozoon pass through parallel stages. The general process of sperm formation is designated spermatogenesis; that of egg formation, oogenesis. An essential feature of lioth is a component process, termed maturation, which is important for the following reason. Since reproduction in vertebrates depends upon the union of male and female germ cells, it is manifest that without special provision this union would necessarily double the number of chromosomes at each generation. Such progressive increase is prevented by the events of maturation. This may be defined as a form of cell division during which the number of chromosomes in the germ cells is reduced to one-half the number characteristic for the species. Its significance in the mechanism of inheritance is discussed on p. 28.

Spermatogenesis. - The spermatozoa originate in the epithelial lining of the testis tubules. Two types of cells are recognizable : the sustentacular cells (of Sertoli), and the male germ cells (Fig. 9). All the latter are descendants of primordial germ cells, which, by division, first form spermatogonia. These in turn |3roliferate and produce numerous generations of like cells. Ultimately the spermatogonia enter a growth period, at the end of which they are termed primary spermatocytes. Each contains the full number of chromosomes typical for the male of the species. Next ensues the process of maturation. This comprises two cell divisions, each primary spermatocyte producing two secondary spermatocytes, and these in turn four cells known as spermatids. During these cell divisions the number of chromosomes is reduced to half the original number in the spermatogonia.

Arey1924 fig009.jpg

Fig. 9. Stages in the spermatogenesis of man arranged in a composite to represent a portion of a seminiferous tubule sectioned transversely. X 900.

The spermatids now attach to Sertoli cells, from which they appear to receive nutriment, and become transformed into mature spermatozoa (Fig. 10). The nucleus forms almost all the head; the centrosome divides, the resulting particles passing to the extremities of the neck. The posterior centrosome differentiates the annulus and is prolonged to become the axial filament. The cytoplasm forms the sheaths of the neck and tail, whereas the spiral filament of the connecting piece is derived from cytoplasmic mitochondria. When the transformation is complete, the spermatozoa detach from the sustentacular cells and are set free in the lumen of the seminiferous tubule.

Maturation in Ascaris

The way the number of chromosomes is reduced may be seen in the spermatogenesis of Ascaris (Fig. 1 1). Four chromosomes are typical for Ascaris megalocephala hivalens, and each spermatogonical cell contains this number. In the early prophase of the primary spermatocyte there appears a spireme thread consisting of four parallel rows of granules (B). This thread breaks in two and forms two quadruple structures, known as tetrads (D-F) ; each is equivalent to two original chromosomes, paired side by side and split lengthwdse to make a bundle of four. At the metaphase {G}, a tetrad divides into its two original chromosomes which already show evidence of longitudinal fission and are termed dyads. One pair of dyads goes to each of the daughter cells, or secondary spermatocytes (G-I). Without the formation of a nuclear membrane, the second maturation spindle appears at once, the two dyads split into four monads, and each daughter spermatid receives two single chromosomes (monads), or one-half the number characteristic for the species. The tetrad, therefore, represents a precocious division of the chromosomes in preparation for two rapidly succeeding cell divisions which occur without the intervention of the customary resting periods. The easily understood tetrads are not formed in most animals, although the outcome of maturation is identical in either case. A diagram of maturation is shown in Fig. 12. The first maturation division in Ascaris is probably reductional, each daughter nucleus receiving two complete chromosomes of the original four, whereas in the second maturation division, as in ordinary mitosis, each daughter nucleus receives a half of each of the two chromosomes, these being split lengthwise. The latter division is equauonal and the daughter nuceli receive chromosomes bearing similar hereditary qualities.

Arey1924 fig010.jpg

Fig. 10. Diagrams of the development of spermatozoa (Meves in Lewis and Stohr). a.c, Anterior centrosome; a.f., axial filament; c.p., connecting piece; ch.p., chief piece; g.c., cap; n., nucleus; nk., neck; p., cytoplasm; p.c., posterior centrosome.

Fig. 11. Reduction of chromosomes in the spermatogenesis of Ascaris megalocephala bivalens (Brauer in Wilsonj. X about i loo. A-G, Successive stages in the division of the primary spermatocyte. The original reticulum undergoes a very early division of the chromatin granules which then form a quadruply split spireme (B, in profile). This becomes shorter (C, in profile), and then breaks in two to form two tetrads (D, in profile), (E, on end). F, G, H, first division to form two secondary spermatocytes, each receiving two dyads. I, Secondary spermatocyte. J, K, The same dividing. L, Two resulting spermatids, each containing two monads or chromosomes.

Some animals reverse the sequence of events, reduction occurring at the second maturation division.

Maturation in Man

All spermatogonia, like the somatic cells, contain 48 chromosomes. The primary spermatocytes form tetrads and their division separates the mated chromosomal pairs into 24 single chromosomes of the secondary spermatocyte. Hence, this mitosis is reductional. The secondary spermatocytes then divide equationally into spermatids, each of which also contains 24 single chromosomes. Transformation into spermatozoa ensues (Figs. 9 and 10). Those details of maturation which pertain to sex determination are explained on p. 29.

Fig. 12. - Diagrams of maturation in spermatogenesis and oogenesis (Boveri).

Oogeneiss. - The ova, like the male elements, arise from the multiplication of primordial germ cells in the ovary (cf. p. 156). At birth, or shortly after, human ova cease forming. The number at this time in both ovaries has been placed between 100,000 and 800,000. Cellular degeneration reduces this supply until, at 18 years, the total is from 35,000 to 70,000 and several years after the menopause no more are to be found.

Late in fetal life, indifferent cells, by surrounding the young ova ioogonia) of the cortex, produce primordial follicles (Fig. 13 A). Some begin growth at once, others are quiescent until childhood or adult life is attained. During the slow growth period, the small, nutritive follicle cells increase in number and the oogonium gains greatly in size. When the follicle cells are several layers deep, a cavity appears between them. This enlarges, and there reSults a sac, the vesicular, or Graafian follicle, filled with fluid, the liquor folliculli (Fig. 13 5 ). As growth continues, the oogonium becomes located more and more eccentrically until it lies at one side of the follicle, buried in a mound of follicular cells termed the cumulus odphorus (egg-bearing hillock) (Fig. 14). Around the stratified follicle cells, now designated the stratum granulosum, there is differentiated from the stroma of the ovary the theca folliculi. This is composed of an inner, vascular tunica interna, and an outer, fibrous and muscular tunica externa.

Fig. 13. A, Two primordial human follicles and one early in growth (De Lee). X200. B, Section of a human ovarian cortex with ten primordial follicles and one young Graafian follicle (Piersol). X 90.

.At the end of the growth period, the follicle has enlarged from a structure 0.04 to 0.06 mm. in diameter to one 5 to 12 mm. (Fig. 16 A); similarly, the primordial ovum measured 0.04 to 0.05 mm. whereas it now has a diameter of about 0.2 mm. In harmony with the terminology for the male cell, the grown oogonium is designated a primary oocyte. The final stages of oogenesis are maturative. As in spermatogenesis, two cell divisions take place, but with this difference: the cytoplasm is divided unequally, and instead of four cells of equal size resulting, there are formed one large ripe ovum, or ootid, and three rudimentary or abortive ova, known as polar bodies, or polocytes (Fig. 15). The number of chromosomes is reduced in the same manner as in the male, so that the ripe ovum and each polar cell contain one-half the number of chromosomes found in the oogonium or primary oocyte.

Fig. 14. - An advanced Graafian follicle and ovum from a girl of fifteen (Prentiss). X 30.

Fig. 15. - . 4 , Formation of the first polar cell in the mouse ovum (Sobotta). X 1500. B, Separation of the second polar cell in the bat ovum (after Van der Stricht).

During maturation the ovum and first polocyte are termed secondary oocytes (comparable to secondary spermatocytes) ; the mature ovum (ootid) and second polocyte, with the daughter cells of the first polocyte. are comparable to the spermatids (Fig. 12). Each spermatid, however may form a mature spermatozoon, but only one of the four daughter cells of the primary oocyte becomes functional. The ovum develops at the ex])ense of the three ])olocytes which are abortive and degenerate eventually, though it has been shown that in some insects the polar cell may be fertilized and segment several times like a normal ovum. In most animals, the actual division of the first polocyte into two daughter cells is suppressed (cf. Fig. 1 5 B). The nucleus of the ovum after maturation is known as the jcniale pronndcus.

Maturation in the Mouse. - Typical maturation occurs in the mouse. 1 'he first jiolocyte is formed while the ovum is still in the Graafian follicle. Neither astral rays nor typical centrosomes have been observed; the chromosomes are V-shaped. The finst polar cell is constricted from the ovum and lies beneath the zona pellucida as a spherical mass about 25 micra in diameter (Fig. 15 A). Both ovum and polar cell (secondary oocytes) contain 20 chromosomes, or half the number normal for the mouse. The first maturation division is the reductional one and the chromosomes take the form of tetrads.

After ovulation has taken place, the ovum lies in the ampulla of the uterine tube. If fertilization occurs, a second polocyte is cut off, the nucleus of the ovum not having regained its membrane between the production of the first and second polar bodies (Figs. 15 A and 17 A, D). The second maturation spindle and second polar cell are smaller than the first. Immediately after the appearance of the second polar cell, the chromosomes resolve themselves into a reticulum and the female pronucleus is complete [Mig. 17 D).

Maturation in Man. - -The only observations are those of Thompson (1919), who believes to have identified stages in the formation of all three polar cells prior to ovulation or fertilization. The evidence presented, however, can hardly be accepted as conclusive. Yet, in Tarsius, a low primate, both polar cells have been observed.


The ripe germinal products are next released from their respective sex glands and then brought together.

Ovulation. - The discharge of the ovum from its follicle comprises ovulation. A few animals breed continuously, but commonly there is a seasonal or annual spawning period. The several mammalian groups show various gradations between an almost continuous breeding period (oestrus) and an annual one. In man ovulation is periodic, at intervals of four weeks, beginning at puberty and ending with the menopause. However, fully formed Graafian follicles appear in the ovary during the second year of infancy, and, in some individuals, even before birth.

Ovulation may occur at this time, but usually these precociously formed follicles degenerate with their contained ova. Generally, only one follicle and ovum mature each month, the ovaries roughly alternating. Yet, ordinary multiple births depend on the rupture of two or more follicles. Rarely in man, but frequently in the monkey, follicles contain more than one egg. Thus, from the thousands of potential ova, only about 200 ripen in each ovary during the 30 years of sexual activity.

The completed follicle is from 5 to 12 mm. in diameter. It makes a bud-like protuberance from the surface of the ovary, and at this point the ovarian wall is very thin (Fig. 16 A). Internally, the follicle contains fluid, probably under vascular and muscular tension. The precise factors which cause rupture are not positively known, but they doubtless include mechanical pressure, perhaps combined with a weakening of the follicular wall by the digestive influence of the contained fluid (Schochet, 1920).

Fig. 16. A , Human uterine tube and ovary with mature Graafian follicle] (RibemontDessaignes). B, Sectioned human ovary with a corpus luteum verum and two corpora albicantia. X 1.5.

When the follicle bursts, the fluid gushes out, carrying with it the ovum torn loose from its cumulus oophorus. The adhering follicular cells, immediately investing the ovum, constitute the corona radiata (Fig. 6). The ovum is swept into the uterine tube by inwardly stroking cilia of the tubal Ambriae. Although the ovum is now ready to be fertilized, it is not yet technically - mature, - for the last polar division awaits the stimulus of fertilization.

The Corpus Luteum - After ovulation, a blood clot, the corpus liemorrhagicum, forms within the empty follicle. The follicle cells of the stratum granulosum proliferate, enlarge, and produce a yellow pigment. The w'hole structure, composed of lutein cells and connective-tissue strands, is termed the corpus luteum, or yellow body (Fig. 16 B). If pregnancy does not supervene, the corpus luteum spurium reaches its greatest development within two weeks and then gradually is replaced by fibrous tissue ; the resultant white scar is known as the corpus albicans. In pregnancy the corpus /zhtvuKuer/oH continues its growth until, at the thirteenth week, it reaches a maximal diameter of 1 5 to 30 mm. ; at term it is still a prominent structure in the ovary. The corpus luteum is believed to produce an important internal secretion, for if removed the ovum fails to attach to the wall of the uterus, or if the ovum is already embedded, development ceases (Fraenkel). An influence in retarding ovulation and stimulating the mammary gland function has also been shown experimentally (L. Loeb; O - Donoghue).

Relation of Ovulation and Menstruation. - Since human ovulation and menstruation both begin with puberty, recur at about twenty-eight day intervals, and discontinue during pregnancy and at the menopause, a close relation has long been inferred. The cessation of the menses after ovarian removal further indicates dependence. For many years the two processes were supposed to be synehronous. This belief was based upon clinical oliservations by Leopold, Ravano and others who tried to correlate the ages of corpora lutea with known menstrual histories. Since then, Meyer, Ruge, Schroder, Fraenkel, and Halban, utilizing better standardized corpora lutea, have presented convincing evidence that ovulation occurs most often between the fourth and fourteenth day after the menstrual onset. While correct as a generalization, this correlation is not rigid and often ova are liberated at other times. Moreover, in young girls ovulation may precede the inception of menstruation and it may occur in women during pregnancy and lactation or after the menopause.

Coitus and Insemination. - In most aquatic animals the eggs and sperm are discharged externally at about the same time and place. Their meeting depends largely upon chance, enhanced by the production of immense numbers of spermatozoa. Some animals increase the certainty of such cell union by a pscudocopulation ; thus, the male frog clasps the female and jiours his milt over the eggs as they are extruded. Many invertebrates and all amniote vertebrates have their sex cells unite inside the female - s body. This is effected by the sexual embrace termed copulation, or coitus. In general, those animals whose offspring reach maturity with reasonable surety (as the result of internal fertilization and postnatal care) produce fewer germ cells, especially ova, than those that leave fertilization to chance and development to hazard. The codfish produces 10,000,000 eggs in a breeding period, a sea urchin 20,000,000; in certain birds and mammals only a single egg is matured, yet the stock of each remains constant.

The purpose of coitus is to introduce spermatozoa into the vagina. The completed human sperm detach from the Sertoli cells, and clusters are moved along the efferent ductules into the epididymis. Here they become separate and motile, due to a secretion of the duct epithelium. The seminal fluid accumulates about the ampulla of the ductus deferens; its storage in the seminal vesicles is much questioned. At the climax of coitus ejaculation occurs and the spermatozoa, suspended in seminal fluid, are forcibly ejected. The seminal fluid, or semen, is a mixture chiefly of the secretions of the seminal vesicles, prostate, and bulbourethal glands, in which occur the spermatozoa. The volume of the ejaculate is about 3 c.c. and in it swim over 200,000,000 spermatozoa.

The outstanding functional feature of spermatozoa is their flagellate swimming. Because of this they were once regarded as parasites living in the seminal fluid. Forward progress is at the rate of about 2.5 mm. a minute, which, length for length, compares with the ordinary gait of man. An acid environment, such as the vagina, is deleterious or fatal; an alkaline medium, as furnished by the uterus, is favorable. Spermatozoa tend always to swim against feeble currents. This is important, as the outwardl^^ stroking cilia of the uterine tubes and uterus direct the spermatozoa by the shortest route to the ovum. They probably reach the ampulla of the uterine tube two hours or more after coitus.

Spermatozoa have been found motile in the uterine tube nine days after the admission of a patient to the clinic, and, according to her statement, three and one-half w^eeks after coitus. They have been kept alive eight days outside the body. It is not known for how long spermatozoa are capable of fertilizing ova. Keibel holds that this would certainly be more than a week. However, Lillie (1915) has shown with sea urchins that the ability to fertilize is lost long before vitality or motility is impaired, and Mall (1918) concludes that the duration of the fertilizing power of human spermatozoa is safely less than the corresponding period in the ovum, which is probably for fully 24 hours after ovulation. In the hen, spermatozoa remain functional three weeks; in bats six months; in bees five years.


The formation, maturation, and meeting of the male and female germ cells are all preliminary to their actual union which definitely marks the beginning of a new individual. This penetration of ovum by spermatozoon and the fusion of their - pronuclei - constitute the process oi jertilization. In practically all animals, fertilization also starts the ovum dividing and thus initiates development in the ordinary sense. A few invertebrates, however, can develop without the aid of fertilization; this method is styled parthenogenesis, and in such eggs there is usually but one polar cell and hence no chromosome reduction.

Random movements of the sperm bring them in contact with ova. It is very doubtful whether there is any chemical attraction. In some forms, as for example fishes, tactile response keeps -the spermatozoa in contact with anything touched. In mammals, amphibia, and many invertebrates, the ovum is either naked or surrounded by a delicate vitelline membrane. Spermatozoa can enter such eggs at any point. Ova that are invested with heavy membranes usually have a definite funnel-shaped aperture, the micro pyle, through which the male cell must enter. Only motile spermatozoa are able to attach to the surface of an egg; it is probable that forces allied to phagocytosis, rather than vibrational energy, accomplish the actual - penetration. - In general, only one spermatozoon normally enters an egg; how others, endeavoring to penetrate, are thereafter excluded is not entirely clear. If accident or im]iaired vitality admits more than one sperm, development is abnormal and soon ends. On the contrary, some sharks, amphibia, reptiles, and birds normally exhibit such polyspermy. In all these cases, however, only one spermatozoon unites with the female pronucleus.

The fertilized ovum derives its nuclear substance equally from both parents, the cytoplasm (and yolk) almost entirely from the mother, the centrosome probably from the father.

The fundamental results of fertilization are: (i) the union of male and female pronuclei to form the cleavage nucleus (thus restoring the original number of chromosome pairs); (2) the initiation of cell division, â– or cleavage, in which all male and female chromosomes take part.

These two factors are separate and independent phenomena. It has been shown by Boveri and others that fragments of sea urchin - s ova containing no part of the nucleus may be fertilized by spermatozoa, segment, and develop into larvae. The female chromosomes are thus not essential to the process of cleavage. Loeb, on the other hand, proved that the ova of invertebrates may be made to develop by chemical and mechanical means without the cooperation of the spermatozoon {artificial parthenogenesis). Even adult frogs have been reared from mechanically stimulated eggs. These facts show that the actual union of the male and female pronuclei is not the means of initiating the development of the ova. In all vertebrates it is, nevertheless, the end and aim of fertilization.

Lillie maintains that the cortex of a sea urchin - s ovum produces a substance, fertilizin. This he regards as an amboceptor essential to fertilization, with one side chain which agglutinates and attracts the spermatozoa, and another side chain which activates the cytoplasm and initiates the cleavage of the ovum. According to Loeb, agglutination is proved in but few forms and Lillie - s interpretation fails to meet all the facts. Loeb holds that the spermatozoon actually activates the ovum to develop by increasing its oxidations and by rendering it immune to the toxic effects of oxidation.

Fertilization in the Mouse. - Normally, a single spermatozoon enters the ovum six to ten hours after coitus. While the second polar cell is forming, the spermatozoon penetrates the ovum and loses its tail (Fig. 17 A-C). Its head enlarges and is converted into the male projiuclcits (D). The pronuclei, male and female, approach (E) and resolve first into a spireme stage (F), then into two groups of 20 chromosomes (G). A centrosome, possibly that of the male cell (cf. Fig. 15 B), appears between them, divides into two, and soon the first cleavage spindle is formed (F-H). The 20 male and 20 female chromosomes arrange themselves in the equatorial plane of the spindle, thus making the original number of 40 (H). Fertilization is now complete and the ovum divides in the ordinay way ( 7 , /), the daughter cells each receiving equal numbers of maternal and paternal chromosomes.

Fertilization in Man. - The union of the human germ cells is believed usually to take place in the ampulla of the uterine tube, although it never has been observed in any primate except Tarsius. This conclusion is supported by direct observations on other mammals and by the frequency of tubal pregnancies at this site. Rarely ova become fertilized before entering the tube, but the possibility of fertilization after they have reached the uterus is usually denied.

Fig. 17. - Fertilization of the ovum of the mouse (Sobotta). X 500. A-D, Entrance of the spermatozoon and formation of the polar cells; D-E, development of the pronuclei ; F - J, union of chromosomes and the first cleavage spindle.

To be fruitful, the time of coitus and ovulation must roughly agree (p. 22), and, on the average, about one day is supposed to elapse between insemination and fertilization. Most conceptions occur during the week or ten days following menstruation; this is in harmony with the known data on ovulation time (p. 24).

While there are no direct observations on fertilization in man, the ]irocess has been studied throughly in several mammals. In all essentials it undoubtedly follows the common course as described for the mouse.

Superfetation.- If an ovum is liberated by a pregnant woman and fertilized at a later coitus, it may develop into a second, younger fetus. This rare condition, called sit perjctation, is often denied, yet in the early weeks of ])regnancy it is theoretically possible. Superfetation should not be confused with strikingly unequal twin development, due to nutritional or other inequalities.


The Significance of Mitosis and Maturation. - The complicated processes of mitosis serve the purpose of dividing accurately the chromatic substance of the nucleus in such a way that the self-pcrjietuating chromosomes of each daughter cell may be the same, both quantitatively and ciualitatively. This is important since it is believed by most students of heredity that chromatin particles, or genes, in the chromosomes bear the hereditary characters, and that these are arranged in definite linear order in particular chromosomes. At maturation there is a side by side union of like chromosomes, one member of each pair having come from the father, the other from the mother of the preceding generation; each member, however, carries the same general set of hereditary charaeters as its mate. At this stage of chromosomal conjugation there may be an interchange, or - crossing over, - of corresponding genes, resulting in new hereditary combinations. The reducing division of maturation separates whole chromosomes of each pair, but chance alone governs the actual assortment of paternal and maternal members to the daughter cells; this mitosis obviously halves the chromosome number characteristic for the species. The significance of the ecjuational maturation mitosis, beyond accomplishing mere cellular multiplication, is obscure.

Mendel’s Law of Heredity. - Experiments show that hereditary characters fall into two opposing groups, the contrasted pairs of which are termed allelomorphs. As an example, we may take the hereditary tendencies for dark and blue eyes. It is believed that there are paired chromatic particles, or genes, which are responsible for these hereditary tendencies, and that paired spermatogonial chromosomes bear one each of these genes. Each chromosome pair in separate germ cells may possess similar genes, both bearing dark-eyed tendencies or both blue-eyed tendencies, or opposing genes, bearing the one dark-, the other blue-eyed tendencies. It is assumed that at maturation these paired genes are separated along with the chromosomes, and that one only of each pair is retained in each germ cell.

In our example, either a blue-eyed or a dark-eyed tendency-bearing particle would be retained. At fertilization, the segregated genes of one sex may enter into new combinations with those from the other sex. Three combinations are possible. If the color of the eyes be taken as the hereditary character: (i) two - dark - germ cells may unite; (2) two - blue - germ cells may unite; (3) a - dark - germ cell may unite with a - blue - germ cell. The offspring in (i) will all have dark eyes, and, if interbred, their progeny will likewise inherit dark eyes exclusively. Similarly, the offspring in (2), and if these are interbred their progeny as well, will include nothing but blue-eyed individuals. The first generation from the cross in (3) will have dark eyes solely, for black in the present example is dominant, as it is termed. Such dark-eyed individuals, nevertheless, possess both dark- and blueeyed bearing genes in their germ cells; in the progeny resulting from the interbreeding of this class, the original condition is repeated - pure darks, impure darks which hold blue recessive, and pure blues will be formed in the ratio of 1:2:1 respectively. It is thus seen that blue-eyed children may be born of dark-eyed parents, whereas blue-eyed parents can never have dark-eyed offspring. Many such allelomorphic pairs of hereditary characters are known.

Cytoplasmic Inheritance. - Certain eggs show distinct cytoplasmic zones which cleavage later segregates into groups of cells destined to form definite organs or parts. In a sense this represents a refined sort of preformation, but prelocalization is a more exact term. From these facts Conklin and Loeb argue that the cytoplasm is really the embryo in the rough, the nucleus, through Mendelian heredity, adding only the finer details. Morgan, among others, refuses to admit the validity of this interpretation.

The Determination of Sex. - The sex-determining power lies in a chromosome that can be identified in many animals. This chromosome is termed the accessory, X, or sex chromosome. According to Painter (1923), humair obgonia contain 46 ordinary chromosomes and two X -chromosomes. At maturation the number is halved, and all oocytes and polocytes contain 23 -f X. The spermatogonia, on the contrary, contain 46 ordinary chromosomes, one X-chromosome and its diminutive mate, called the Y-chromosome. After maturation, therefore, half the spermatids have 23 -j- X, the remaining half have 23 -p y. When a spermatozoon with 23 + X fertilizes an ovum, the number is restored to 46 -p 2X and a female results. When a spermatozoon with 23 -p Y fertilizes, the outcome is 46 -p X -p Y and a male results.

Many animals lack the Y, and the male cells contain an odd number of chromosomes. Reduction then forms two classes of spermatozoa, those with the extra chromosome being female producing. In certain birds and moths the system is the exact reverse, inasmuch as the spermatozoa are all alike in chromosomal constitution while the eggs are of two sorts.
